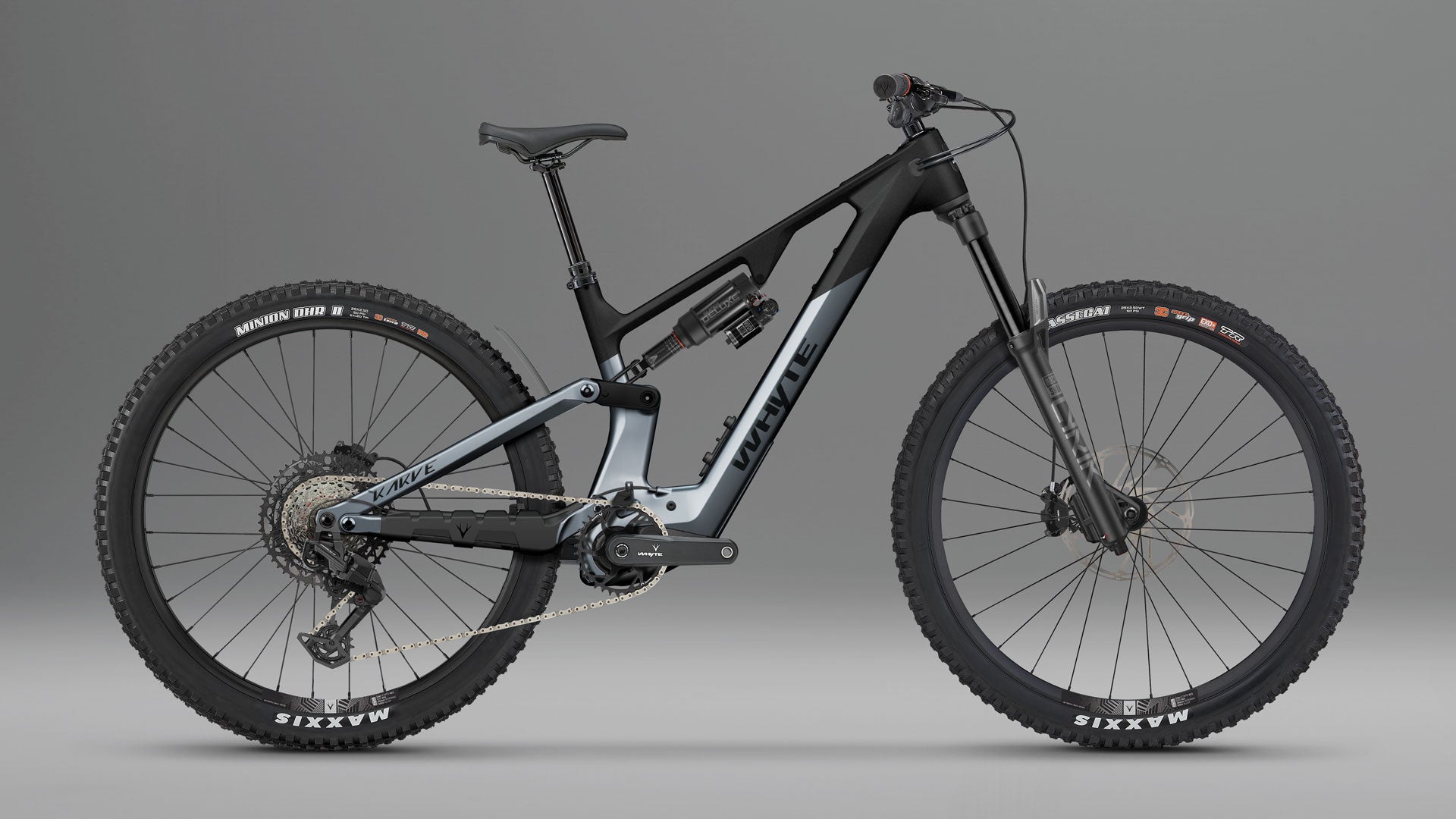

The Whyte Karve RS is a powerful, agile and highly capable electric mountain bike built for riders who demand maximum performance from every ride. Combining advanced suspension design, cutting-edge motor technology and confidence-inspiring geometry, the Karve RS delivers exceptional control, stability and speed across technical climbs, demanding descents and challenging back-country terrain.
At the heart of the Karve RS is a lightweight and durable chassis featuring a uni-directional carbon fibre mainframe paired with a robust alloy rear swingarm. Whyte's renowned Quad-Link 4 suspension platform provides 160mm of front and rear wheel travel, carefully tuned to deliver outstanding traction, control and composure over rough terrain. Whether charging through rock gardens, tackling steep descents or maintaining momentum across technical trails, the Karve RS offers a balanced and predictable ride feel that encourages riders to push harder and ride faster.
Designed around Whyte's proportional geometry philosophy, the Karve RS delivers size-specific handling characteristics that ensure every rider benefits from the same balanced performance and confidence-inspiring ride quality. Combined with the Shape.It Link V2 geometry adjustment system, riders can fine-tune the bike's handling characteristics to suit terrain, riding style and trail conditions.
Power comes from the impressive Avinox M2S drive unit, delivering up to 150Nm of torque and a remarkable 1300W of peak power. Five assistance modes, including Auto, Eco, Trail, Turbo and Boost, provide adaptable support across every type of terrain. The integrated 800Wh battery delivers impressive range for long days on the trails, allowing riders to tackle bigger adventures with confidence.
The advanced Avinox DPC100 OLED display is seamlessly integrated into the top tube, providing a wealth of ride information while maintaining a clean cockpit appearance. Paired with the wireless controller and Avinox Ride smartphone app, riders can easily monitor performance, customise settings and gain deeper insight into every ride.
A dependable SRAM Eagle 90 T-Type mechanical drivetrain provides precise shifting and excellent durability, while SRAM Maven Base four-piston hydraulic disc brakes deliver powerful and consistent stopping performance on steep and demanding terrain. Large 220mm front and 200mm rear rotors maximise braking control, helping riders maintain confidence when trails become fast and technical.
Rolling on trail-smoothing 29-inch wheels front and rear, the Karve RS combines stability, grip and rollover performance to handle the most demanding trails. The frame is also MX-compatible for riders looking to tailor the bike's characteristics even further.
Designed, developed and tested in the UK, the Whyte Karve RS is built to deliver dependable year-round performance, combining cutting-edge eMTB technology with Whyte's proven handling expertise. For riders seeking a full-power electric mountain bike capable of tackling everything from technical trail rides to enduro-style adventures, the Karve RS is ready to turn every ride up to eleven.
Key Features
| Specification | Details | Specification | Details |
|---|---|---|---|
| COLOUR | TBC | CASSETTE | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| FRAME | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM Eagle 70, 12 speed |
| FORK | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth | CRANKSET | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| REAR SHOCK | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte | BOTTOM BRACKET | N/A |
| HEADSET | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings | SEATPOST | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| REAR HUB | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub | SEAT | Whyte Custom |
| FRONT HUB | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole | BAR | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| SPOKES | 14g stainless black, brass nipples | STEM | Whyte, 35mm extension, 35mm bar bore |
| RIMS | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear | GRIPS | Whyte Enduro lock-on |
| TYRES | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) | BRAKES FRONT | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| SHIFT LEVERS | SRAM Eagle 70, 12 speed | BRAKES REAR | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor |
| FRONT MECH | N/A | BRAKE LEVERS | SRAM Maven Base |
| REAR MECH | SRAM Eagle 90 T-Type mechanical, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
| Specification | Details |
|---|---|
| DRIVE UNIT | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| BATTERY | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| DISPLAY | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| CHARGER | Charger 4A (230V) |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike.
| Colours | TBC |
| Sizes | L, M, S, XL |
| Brand | Whyte |
| Model Year | 2026 |
| Barcodes | 100000000011, 100000000012, 100000000013, 100000000014 |
| SKUs / Part Numbers | WEKARRS1SV1-1, WEKARRS2MV1-1, WEKARRS3LV1-1, WEKARRS4XV1-1 |
